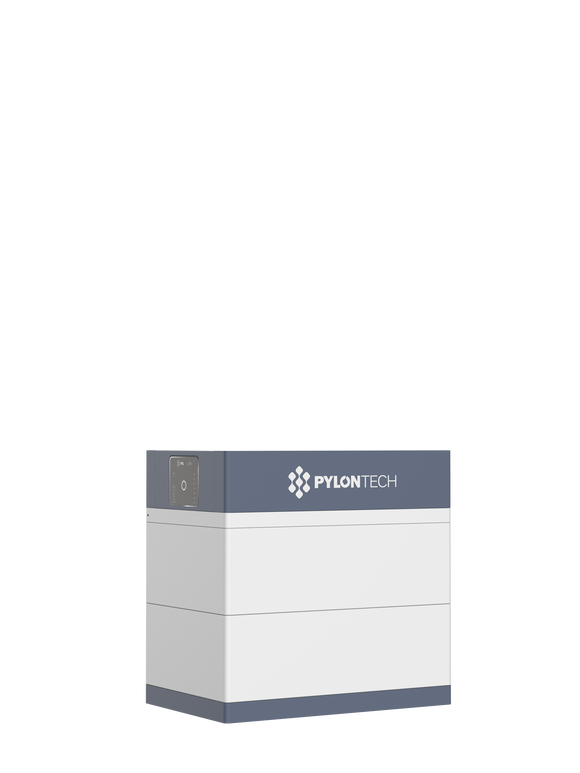

Pylontech Force H3 - 10.24kWh
Pylontech Force H3 – Hochvolt-Batteriesystem für Wandmontage
Modulares Hochvolt-Batteriesystem für den Einsatz mit Hybrid-Wechselrichtern (z. B. Solinteg MHT-Serie), ideal für private und gewerbliche Anwendungen.

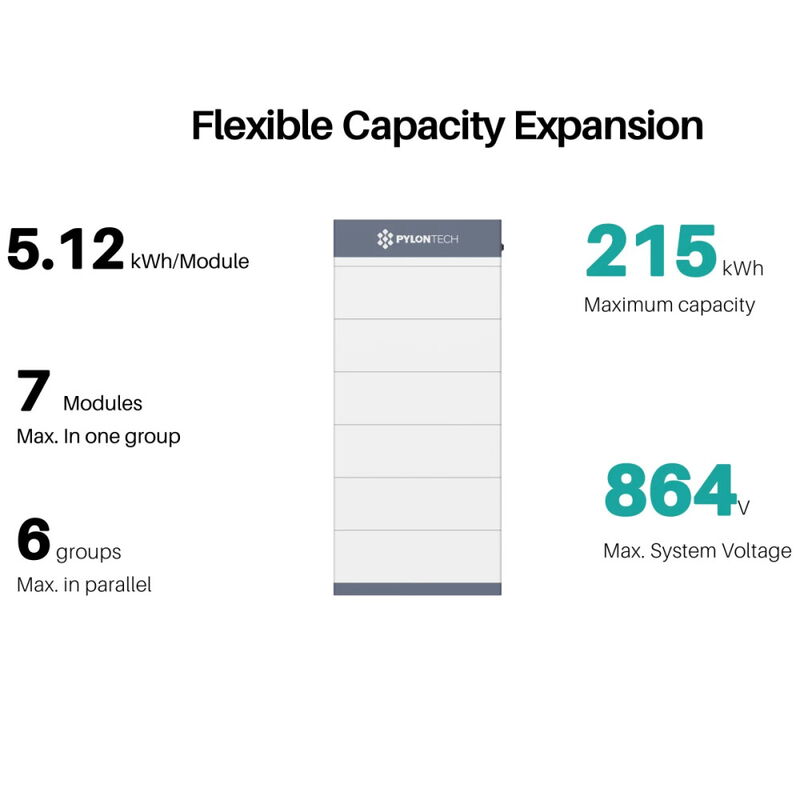

💡 Modulares und skalierbares Design
💡 DC Kopplung für höhere System Effizienz
💡 Einfache Installation durch Steck-System
Technische Daten
| Speicher Kapazität | 10.24 kWh |
| Systemgarantie | 5 Jahre |
| Schutzart/-klasse | IP55 |
| Kühlungsart | passive Luftkühlung |
| Ladezyklen | >8000 FCE |
| DOD | 95 % |
| Kommunikation | Solinteg EMS |
| BMS Typ | FC1000, max. 55 A, 172.8–921.6 VDC |
| Battariemodule |
Lithium-Eisen-Phosphat (LFP), (2 Batterie-Module FH10050 à 5.12 kWh) |
| Temperaturbereich Betrieb: | -10 °C bis +55 °C |
| Temperaturbereich Lagerung: | -20 °C bis +60 °C |
| Transportklassifizierung | UN3480 (Gefahrenklasse 9) |
| Kommunikation Schnittstelle | Modbus TCP |
