Switch cabinet segment controller LFC7734 LTE

Switch cabinet segment controller LFC7734 LTE

Simple and flexible solution for your ripple control.

The segment controller is the central unit (CPU) in the cabinet system. Equipped with a more powerful ARM-Cortez A7 (2.3 GHz) and a Linux kernel. It supports 2G, 3G and 4G communication modes. Common relay circuits for mains switching and for half and full night operation are integrated.

The control cabinet has two relay outputs and can be expanded with additional relays (switching module LFC7520).

Technical Data

Remote communication	LTE
Commissioning	über Interact City
Supply voltage	230 V

Downloads

Datenblatt Schaltschrank

Supplier

Signify

Interact City

Technical details

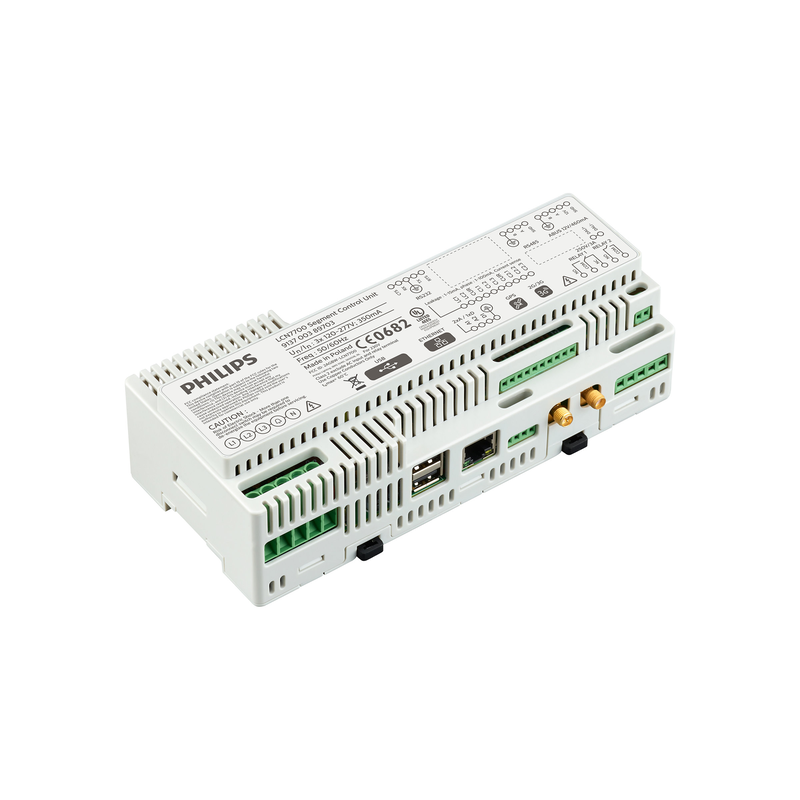

Segment controller LFC7734 LTE control cabinet

Power Consumption	Max. 3 W
Supply Voltage	120 to 277 Vac
Relay	2
Number of Relays	Max 250 V and maximum switching current 3 A (resistive load), 0.75 A (inductive load, e.g. contactor)
LTE	Cat1: B1, B3, B8, B20, B28
Housing material, colour	Light Grey (RAL 7035)
Assembly	DIN Rails (EN50022)
Dimension	W 192, D 86, H 58 mm
Weight	385 g
Operating temperature range	-20 to 60 °C
Operating hours	70,000 hours

Battery LCA8022 Battery Module

Power Consumption	Typ. 20 mA
Power Output	Max 400 mA
Input Voltage	12 V via A-bus
Output Voltage	5 Vdc
Case material, colour	Light Grey (RAL 7035)
Assembly	DIN Rails (EN50022)
Dimension	W 35, D 87.2, H 67 mm
Weight	107 g
Operating temperature range	-40 to 60 °C

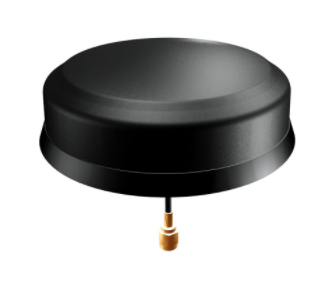

Antenna LCA7588 External Antenna LTE / GPS

Net	2G, 3G and 4G LTE
Bandwidth (GSM)	700 -2700 MHz
Input Voltage	1.5 - 3.6 V
Case material, colour	Black
Assembly	outdoors
Dimension	Ø 77 .3 x 65.5 mm
Operating temperature range	-40 to 85 °C
Protection class	IP67/ IK 09
Cable length	1.5 m /max. 3 m
