Dyness STACK100pro

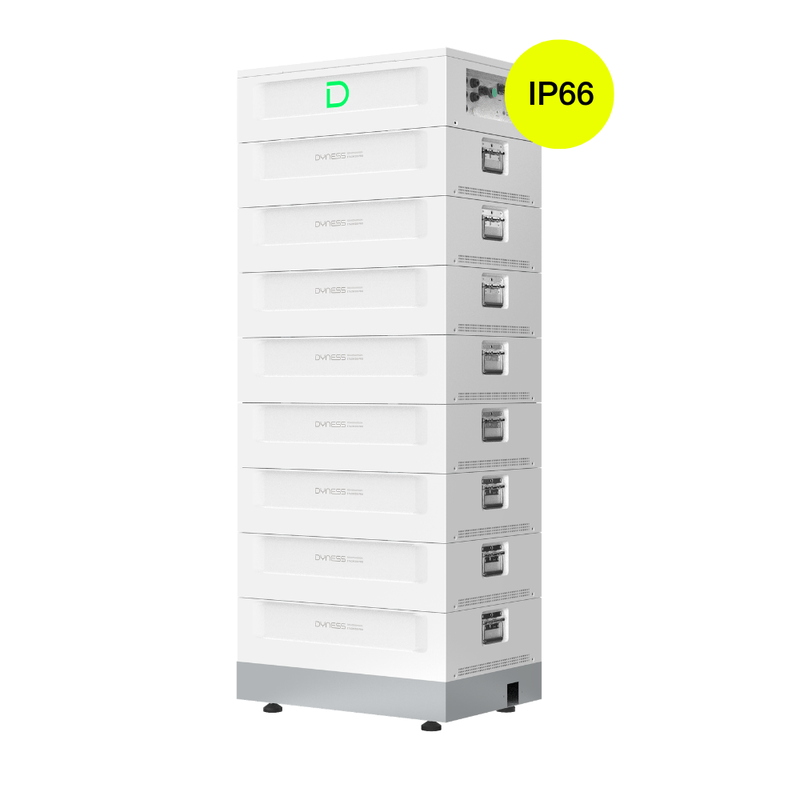

Dyness STACK100pro – Modular Battery System
System capacities ranging from 15- to 921kWh
Modular high-voltage battery system for use with hybrid inverters (e.g. Solinteg MHT series), ideal for multi-family homes, commercial and industrial applications in outdoor settings.
💡 Battery pack ranging from 15.36 to 76.8 kWh*
💡 Up to 12 towers in parallel – max. 921 kWh*
💡 Suitable for outdoor use
💡 Modular and scalable design
💡 Easy installation thanks to plug-in system
💡 Enhanced safety thanks to integrated aerosol extinguishing unit
💡 Improved performance through active air cooling
*Please check the compatibility list due to inverter restrictions
Technical Data
| Speicher Kapazität | 15.36 - 921 kWh |
| Type/class of protection | IP66 |
| Systemgarantie | 10 Jahre |
| Cooling type | Luftkühlung |
| Ladezyklen | >8000 FCE |
| DOD | 95 % |
| Communication | Duo-Dongle |
| BMS Typ | SBDU100pro, max. 100A, 134.4-864VDC |
| Feuerlöschsystem | Aerosol-Feuerlöschgerät |
| Batteriemodule | Lithium-Eisen-Phosphat (LFP), (7 Batterie-Module S51100pro à 5.12 kWh) |
| Temperaturbereich Betrieb: | -20 °C bis +55 °C |
| Temperaturbereich Lagerung: | -10 °C bis +55 °C |
| Transportklassifizierung | UN3480 (Gefahrenklasse 9) |
| Kommunikation Schnittstelle | CAN/RS485 |
