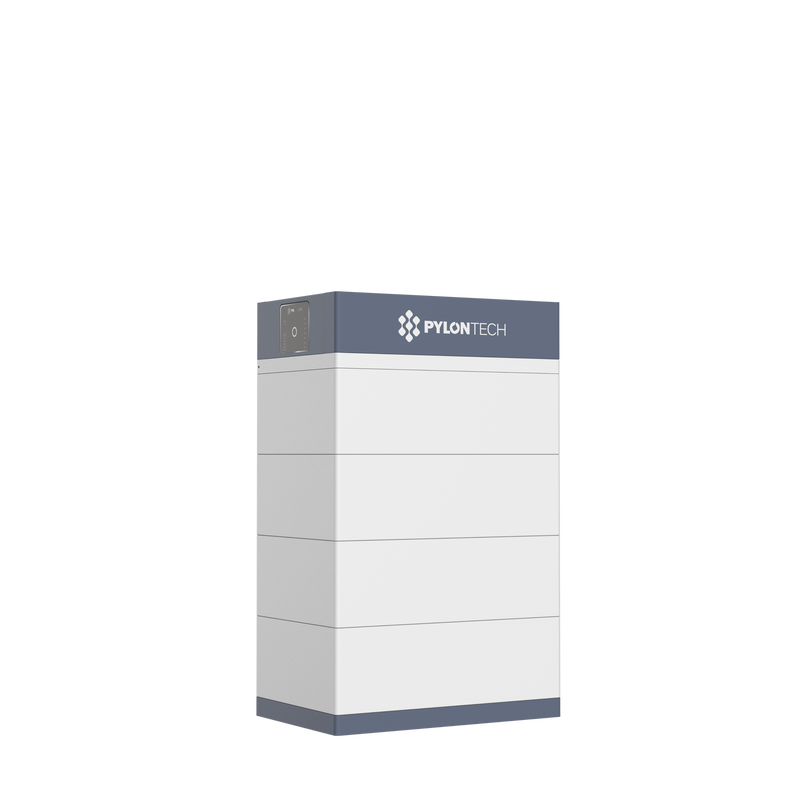

Pylontech Force H3
Pylontech Force H3 – Modular battery system
System capacities ranging from 10- to 214kWh
Modular high-voltage battery system for use with hybrid inverters (e.g., Solinteg MHT series), ideal for residential and commercial applications.

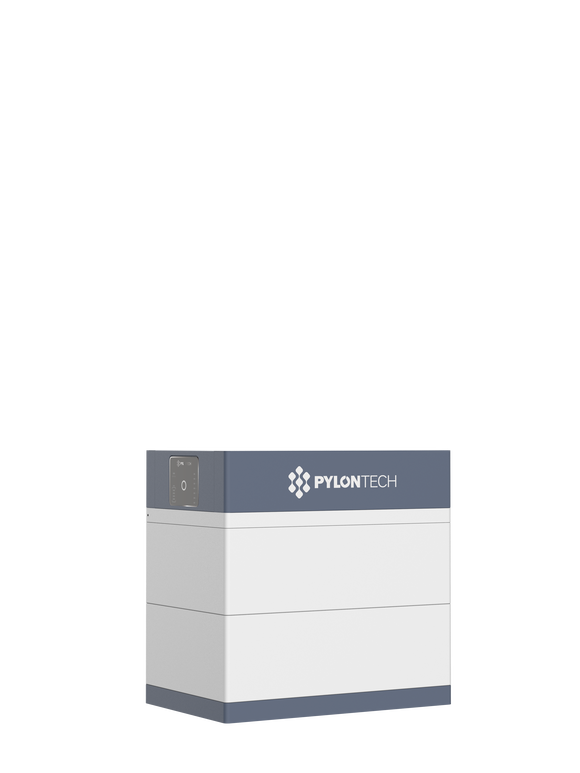

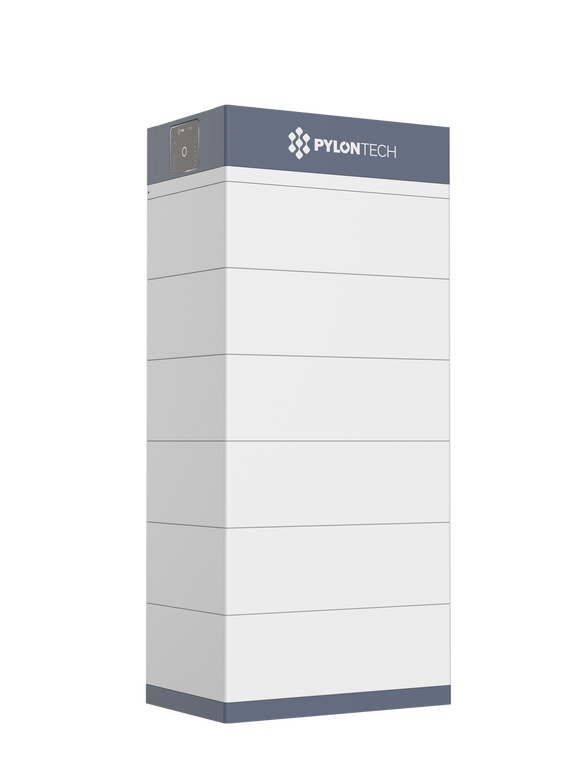

💡 Battery towers ranging from 10.24 to 35.8kWh*
💡 Up to 6 towers in parallel—max. 214.8kWh*
💡 Modular and scalable design
💡 DC coupling for higher system efficiency
💡 Easy installation thanks to a plug-in system
*Please check the compatibility list due to inverter restrictions
Technical Data
| Speicher Kapazität | 10.24 - 214.8 kWh |
| Type/class of protection | IP55 |
| Systemgarantie | 10 Jahre |
| Cooling type | passive Kühlung |
| Ladezyklen | >8000 FCE |
| DOD | 95 % |
| Communication | Duo-Dongle |
| Weight | 39 kg |
| BMS Typ | FC1000, max. 55 A, 172.8–921.6 VDC |
| Batteriemodule | Lithium-Eisen-Phosphat (LFP) |
| Temperaturbereich Betrieb: | -10 °C bis +55 °C |
| Temperaturbereich Lagerung: | -20 °C bis +60 °C |
| Transportklassifizierung | UN3480 (Gefahrenklasse 9) |
| Kommunikation Schnittstelle | Modbus TCP |
