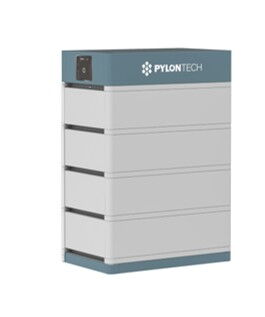

Pylontech Force H3 - 20.48kWh
Pylontech Force H3 - High-voltage battery system for wall mounting
Modular high-voltage battery system for use with hybrid inverters (e.g. Solinteg MHT series), ideal for private and commercial applications.
💡 Modular and scalable design (up to 6 towers in parallel)
💡 DC coupling for higher system efficiency
💡 Easy installation thanks to plug-in system
Technical Data
| Speicher Kapazität | 20.48 kWh |
| Systemgarantie | 10 Jahre |
| Ladezyklen | >8000 FCE |
| DOD | 95 % |
| BMS Typ | FC1000, max. 55 A, 172.8–921.6 VDC |
| Battariemodule | Lithium-Eisen-Phosphat (LFP), (4 Batterie-Module FH10050 à 5.12 kWh) |
| Temperaturbereich Betrieb: | -10 °C bis +55 °C °C |
| Temperaturbereich Lagerung: | -20 °C bis +60 °C °C |
| Transportklassifizierung | UN3480 (Gefahrenklasse 9) |
| Kommunikation Schnittstelle | Modbus TCP |
